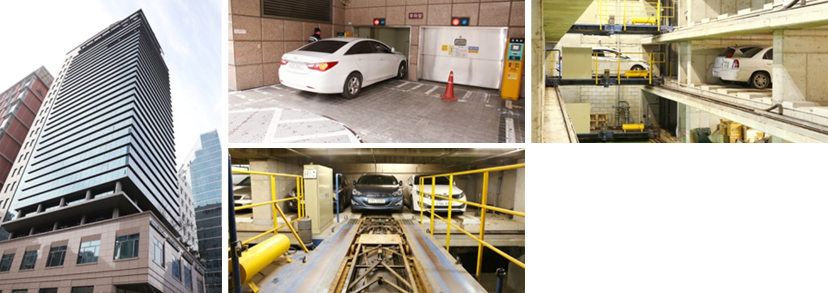

Ele-parking

Elevator type

It features in installation of lift with a pallet on the center of tower and by moving the pallet to the right and left after a car is entered on it. You can find the cutting-edge technology of Samjung Tech with express running speed by the latest elevator system and low-noise, low-vibration operating mechanism.

Features

1. 1) Easy to use for drivers
2. 2) Low noise, low vibration and environmentally friendly
3. 3) Express running of 90m/min ~ 145m/min to shorten
   entry and exit of cars
4. 4) Easy to enter and exit with built-in turntable
5. 5) You can choose suitable model according to installation methods,
   access methods and location.

Entry
operation Exit
operation Exit operation
after entry

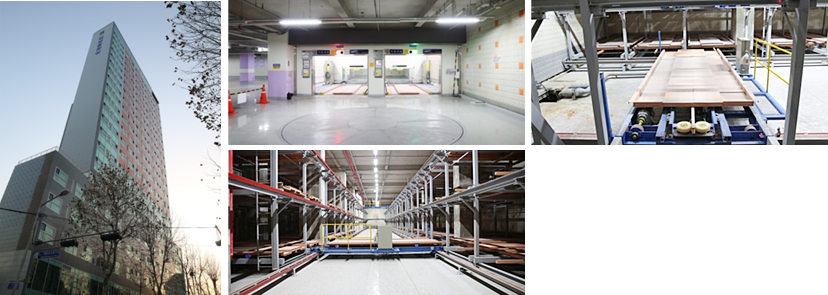

Cart parking

Multi floor cart type - pallet type

It shortens the time of taking in and out of the vehicles due to operating both elevators and carts simultaneously, and is easy to install entrance and exit.

Features

1. 1) Increased parking space by installing additional lifts
2. 2) Shortening of time by forward driven entry (or exit) upon installing
   built-in turntable
3. 3) Effectively corresponds to the vehicle flow line plan by enabling
   flexible placement of entry and exit positions
4. 4) Variety of models including built-in turntable

Entry
operation Exit
operation Exit operation
after entry

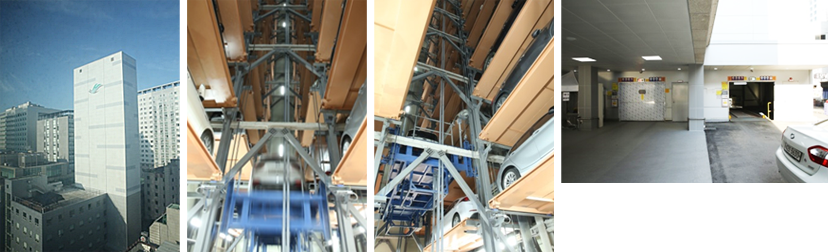

Box parking

Multi floor rotation type

This is a rotation type of multiple levels based on the principle of lift and conveyor by placing pallet in a row to repeat lift and convey. It is suitable for small buildings and can be installed 2 to 6 multi-layers.

Features

1. 1) Highly efficient use of space for narrow and strip land
2. 2) Variety of models including built-in turntable

Entry
operation Exit
operation Exit operation
after entry

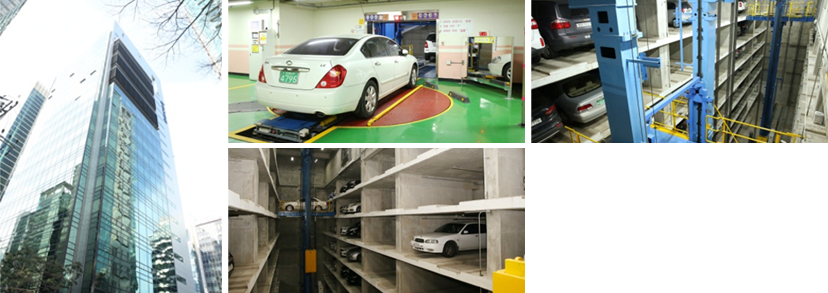

Trolley parking

Multi floor cart type - Non-pallet type

This type consists of a lift moving vertically from the entrance floor to the parking floor, and trolleys traveled independently in each stage of the parking floor. Flexible arrangement of entrance and exit is possible. This system is able to cope with the plan for moving lines of the vehicles as well to utilize underground space.

Features

1. 1) Up to 100 parking space per lift
2. 2) Possible to increase parking space by installation of additional lifts
3. 3) Non-pallet type, shortening of time by entry and exit simultaneously
   (average 1 minute)
4. 4) It can be used semipermanently by installing concrete on parking lot
   and be easy for maintenance.
5. 5) Construction period can be shortened by forming steel frame on it
6. 6) Shortening of time by forward driven entry (or exit) upon installing built-in turntable

Entry
operation Exit
operation Exit operation
after entry

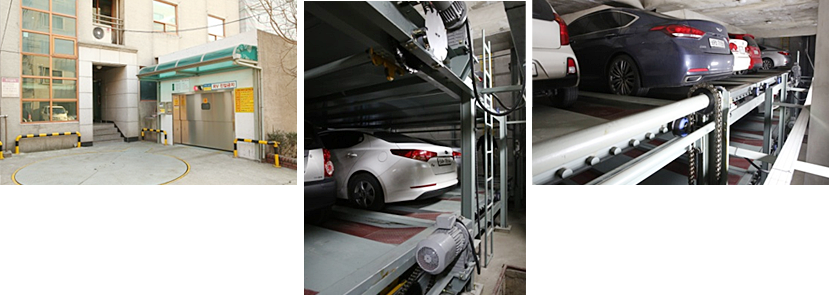

Translator parking

Elevator slide type - Non-pallet type

A translator is elevating and running at the same time to allow vehicles for entry and exit on parking space such as automated warehouse. You can control the number and moving lines of the vehicles by arranging the number and location of entrance and exit easily.

Features

1. 1) Up to 100 parking space per lift
2. 2) Possible to increase parking space by installation of additional lifts
3. 3) Shortening of time by entry and exit simultaneously (average 1 minute)
4. 4) It can be used semipermanently by installing concrete on parking lot
   and be easy for maintenance.
5. 5) Construction period can be shortened by forming steel frame on it
6. 6) Lower floor height is needed for parking lot, which result
   in maximizing utilization of the basement floor when planning new buildings.

Entry
operation Exit
operation Exit operation
after entry

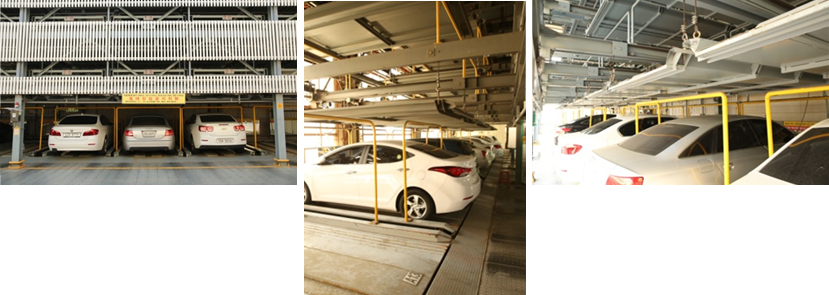

Puzzle parking

Multi level puzzle type

The movement of vehicles in and out with upper and lower pallets repeating elevation and horizontal movement enables the continuous installation like unit 3, 5, 7 depending on the site condition.

Features

1. 1) Excellent space efficiency
2. 2) Fast entry and exit
3. 3) Even if a single unit is failed, other units can be operated normally.

Rotary Parking

Vertical rotation type

This system rotates cages with car vertically by endless chain and is specially designed for up to 16 cars.

Features

1. 1) Shorter continuous entry and exit
2. 2) Excellent space efficiency
3. 3) Suitable for parking lot in downtown area
4. 4) Excellent entry and exit speed

Car Lift

Elevator for car

This is a elevator for car and is operated by drive-in driver.

Features

1. 1) Efficient utilization of building space (lamp is not required)
2. 2) Less trouble
3. 3) Easy to use for users

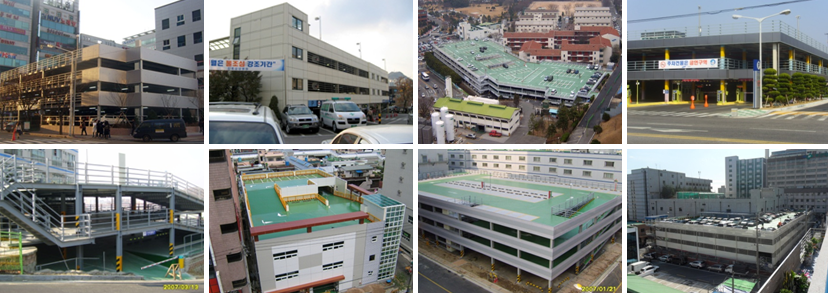

Free parking

Light steel frame drive-in type

Free parking is mainly used by the public, which is economic system made by using assembling type of light steel frame, and to make parking space many times larger than others.

Features

1. 1) Shorter installation period allows you to get
   the best of the existing parking
2. 2) Lightweight prefabricated steel constructions,
   easy to assemble and disassemble, and reasonable price
3. 3) Drive-in parking, no power cost and economical

1. 4) It can be permitted as structure (below 8 m)
2. 5) Excellent work in parking lots at plant, parks, airports, resorts or department stores, and in temporary parking lot.
