Absorption chiller & heater

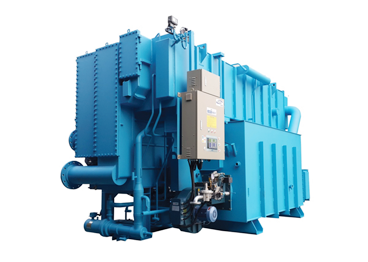

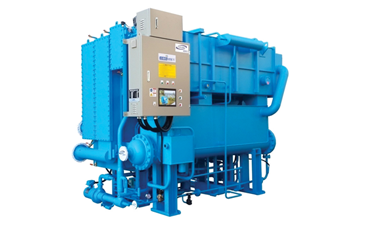

Direct fired double effect absorption chiller & heater (COP 1.36)

Direct fired absorption chiller & heater, Samjung Tech's main product, is driven by combustible LNG, LPG and city gas. It produces and provides chilled water of 6~7 ℃ for HVAC system.

Features

1. 1) Highest efficiency and providing cost 26% energy savings compared to existing product
2. 2) Applied the latest high-efficiency core technology
   • · High efficiency cycle and two stage evaporation/absorption
     technology
   • · Small-diameter high-efficiency heat transfer tube
   • · High efficiency plate heat exchanger technology
   • · Exhaust gas and condensed refrigerant heat exchanger technology
   • · Parallel flow inverter control technology (optional)
3. 3) All models are acquired certificates and official test reposts
   for high-efficiency energy equipment
4. 4) High performance and reliability for smart control panel
   • · Korea's best 10.4 wide touch screen
   • · SIEMENS's latest HVAC dedicated PLC
   • · VNC-based remote control technology (connected to smart phone, PC)
   • · Smart anti-freezing technology of Samjung Tech
5. 5) Easy maintenance and operation
6. 6) Prevent deformation and damage of equipment by installing RUPTURE DISC to all models

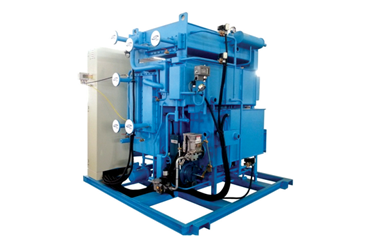

High-efficiency Hybrid absorption chiller & heater (Up to COP 1.8)

This advanced absorption chiller & heater is created by the "Solar Energy Hybrid Absorption Chilling and Heating system development" project from MKE during 2006~2012.

Features

1. 1) Acquired the industry’s first NET certification and core patent technology
2. 2) Highest level solution for solar energy chilling and heating technology
   • · Reduced installation costs by 40% compared to
     the existing solar energy chilling technology
     Improved system efficiency by 30%
   • · Providing four season chilling and heating to overcome
     the limitations of existing solar energy system
   • · Utilizing renewable laws and supply support benefits related
     to renewable energy
3. 3) Possible to connect to various heat source arrangements
   (district heating, cogeneration, plant heat source arrangement,
   fuel cell, etc.)
4. 4) Providing integrated control solution
   (Remote control via a computer or smart phone)

Absorption chiller

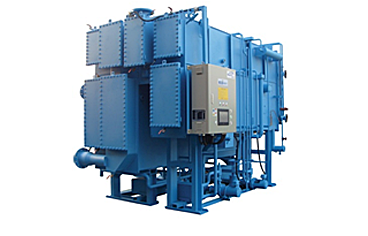

High-efficiency steam absorption chiller (steam consumption: 3.6kg/hr)

Direct fired absorption chiller & heater, Samjung Tech's main product, is driven by steam. It produces and provides chilled water of 6~7 ℃ for HVAC system.

Features

1. 1) Highest efficiency and providing 25% energy savings compared to existing product
2. 2) Applied the latest high-efficiency core technology
   • · High efficiency cycle and two stage evaporation/absorption
     technology
   • · Small-diameter high-efficiency heat transfer tube
   • · High efficiency plate heat exchanger technology
   • · Condensed refrigerant heat exchanger, drain heat recovery unit
     technology
   • · Inverter control technology
3. 3) High performance and reliability for smart control panel
   • · Korea's best 10.4 wide touch screen
   • · SIEMENS's latest HVAC dedicated PLC
   • · VNC-based remote control technology (connected to smart phone, PC)
   • · Smart anti-freezing technology of Samjung Tech
4. 4) Easy maintenance and operation
5. 5) Prevent deformation and damage of equipment by installing RUPTURE DISC to all models.

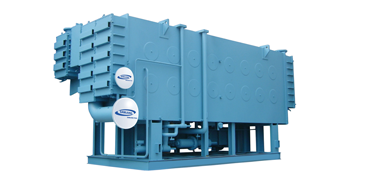

Two-stage hot water driven absorption chiller (COP 0.64, IPLV 0.83)

This absorption chiller produces 7℃ chilled water with using 95℃ or higher hot water as heating source while the 95℃ or higher hot water is getting lower to 55℃ by passing through the absorption chiller installed in a customer's building.

Features

1. 1) Top rated entry-level solution for district cooling systems using collective energy
2. 2) Applied the latest absorption technology
   • · Small-diameter high-efficiency heat transfer tube
   • · High efficiency plate heat exchanger technology
3. 3) High efficient two-stage hot water driven absorption chiller
   (COP 0.73, IPLV 0.91)
   • · Saved energy by up to 14% compared to standard two-stage
     hot water driven absorption chillers
   • · Increased heated side and improved part load efficiency
4. 4) Using various support system for district cooling
5. 5) High performance and reliability for smart control panel
   • · Korea's best 10.4 wide touch screen
   • · SIEMENS's latest HVAC dedicated PLC
   • · VNC-based remote control technology (connected to smart phone, PC)
   • · Smart anti-freezing technology of Samjung Tech
6. 6) Easy maintenance and operation
7. 7) Prevent deformation and damage of equipment by installing RUPTURE DISC to all models

One-stage hot water driven absorption chiller (COP 0.72)

This absorption chiller produces 7℃ cooling water with using 95℃ or higher hot water as heating source while the 95℃ or higher hot water is getting lower to 80℃ by passing through the absorption chiller installed in a customer's building.

Features

1. 1) Top rated efficiency and compact design
2. 2) Possible to use hot water from district heat or various waste heat
3. 3) Applied the latest absorption technology
   • · Small-diameter high-efficiency heat transfer tube
   • · High-end high efficiency plate heat exchanger technology
4. 4) High performance and reliability for smart control panel
   • · Korea's best 10.4 wide touch screen
   • · SIEMENS's latest HVAC dedicated PLC
   • · VNC-based remote control technology (connected to smart phone, PC)
   • · Smart anti-freezing technology of Samjung Tech
5. 5) Easy maintenance and operation
6. 6) Prevent deformation and damage of equipment by installing RUPTURE DISC to all models

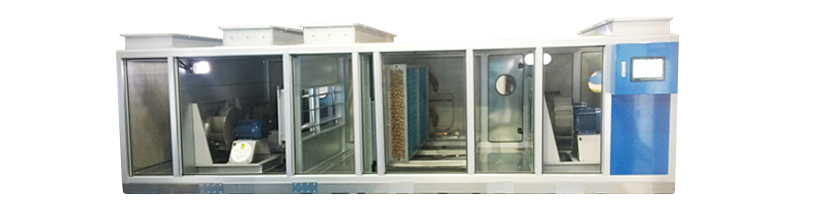

Air handing unit

Air handing unit

Samjung Tech's Air handling unit makes the optimum air conditioning, which can be applied to the various demands of the standard temperature differential system or the large temperature differential system.

Features

1. 1) Minimize installation space by compact design
   and modular structure
2. 2) Applied AMCA and high-efficiency certified fan
3. 3) Suitable for energy-saving rating standards for building
   by using motor satisfying minimum energy consumption rate.
4. 4) Excellent durability of casing with double skin structure

1. 5) Excellent corrosion resistance by applying AL FRAME to prevent condensation
2. 6) Completely blocked leakage by applying air tight parts
3. 7) Long-life LED LAMP

PLUG FAN air conditioner

Samjung Tech's Air handling unit makes the optimum air conditioning, which can be applied to the various demands of the standard temperature differential system or the large temperature differential system.

Features

1. 1) Applied AMCA and high-efficiency certified fan
2. 2) Suitable for renovated site, which has narrow installation
   space
3. 3) Reduced maintenance cost because replacement of
   consumable parts are not required (pulley, belt, etc.)

1. 4) No dust generated due to driving belt (comfortable driving)
2. 5) Reduced operating costs by inverter control in accordance with the indoor air conditioning load

EHP air conditioner

This system provides cooling and heating service for buildings using heat pump cycle, which can make cooling and heating operation without any chiller or boiler.

Features

1. 1) Outstanding performance for cooling and heating operation on large space or
   high ceiling space.
2. 2) Registered as a partner of Samsung Electronics
3. 3) Applied Samsung's the most efficient DVM outdoor unit of air conditioner
4. 4) Using environmentally friendly refrigerant (R410A)

Other air conditioning unit

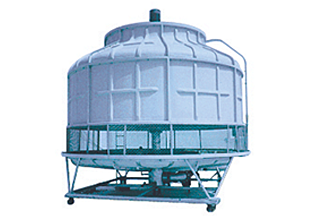

Cooling tower

When water is contacted by the cold air, some water is evaporated. This is a phenomenon that lowers the water temperature by taking heat required for the evaporation. The cooling tower flows down water from its tower and blows air from its bottom using the phenomenon.

Features

1. 1) Excellent performance, low noise and high efficiency based on years of
   accumulated experience and technology
2. 2) Cross-flow, counter-flow, forced draft type, etc applied to commercial
   buildings
3. 3) Closed type, open type applied to special fields

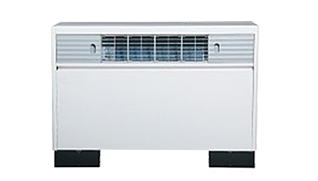

Fan coil unit (FCU)

Samjung Tech's Fan coil unit is a highly efficient unit composed by unifying a radiator and a ventilator in compact form. It was designed to save energy, installation space and easy to install.

Features

1. 1) Highest efficient slit fin
2. 2) Ensure silent indoor space by low noise fan
3. 3) Easy and convenient operation by digital control
4. 4) Possible to select a variety of models suitable for your purpose and conditions

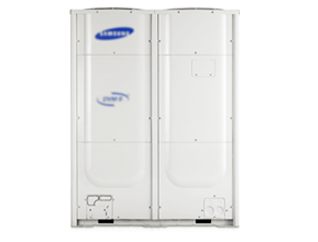

System air condition (EHP)

Samjung Tech's system air condition (EHP) provides multiple connection of a variety of indoor units into one outdoor unit to enable the best designs available to characteristics of each room of the building. It was designed to utilize indoor and outdoor space effectively.

Features

1. 1) Registered as a partner of Samsung Electronics
2. 2) Providing various products
3. 3) Using environmentally friendly refrigerant (R410A)
4. 4) Strict quality management and systematic follow-up by Samsung Electronics,
   which rated No.1 for Global Customer Satisfaction.

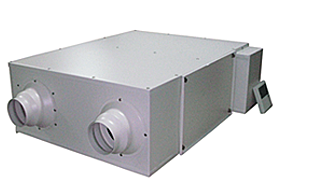

Energy recovery ventilation system (ERV)

This ERV system discharges contaminated air in the room to the outside and supplies only fresh air into the room with high efficiency electric heat exchanger, low-noise blower and high-performance filter.

Features

1. 1) Slim design, minimal installation space compared
   to same level of products
2. 2) High-performance cleaning filter
3. 3) Perfect noise cut off
4. 4) Powerful automated control system
